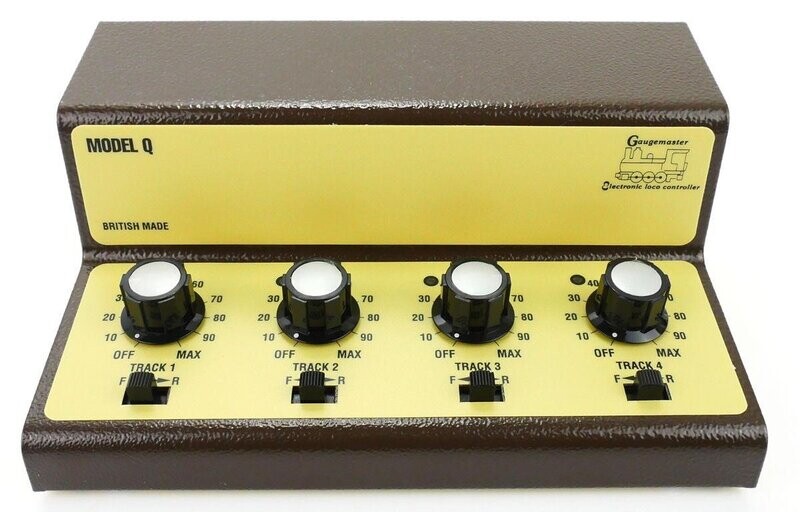

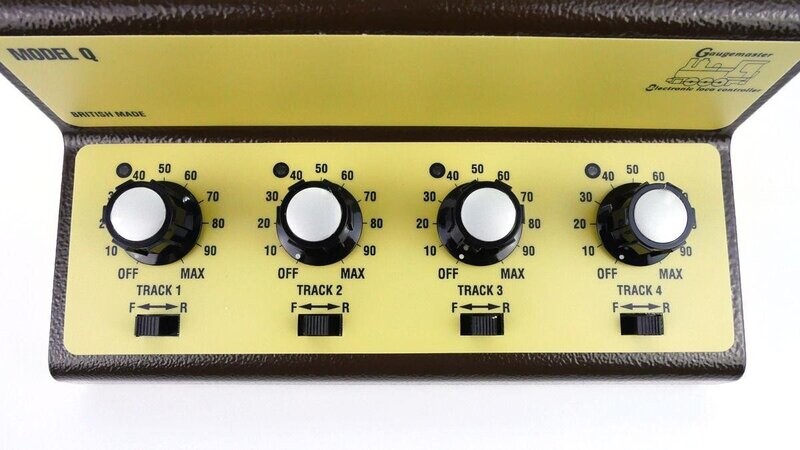

Gaugemaster GMC-Q Four Track Cased Controller

For Scale(s): HO Scale, N Scale, OO Scale, OO9 Scale

Made in the UK

The Model Q is the best selling four track mains powered controller available today. It represents good value for money as it offers all the features associated with GAUGEMASTER control such as smooth running, impressive slow-speed characteristics, a 16v AC output for accessories, 2 x 12v DC outputs, again for accessories but most impressively four track control from the one unit.

This enables the operation of large, main line model railways and gives you the best chance of trouble free running with this analogue controller. Naturally, the unit is protected with positive temperature coefficient cut-outs which automatically reset when the fault condition is removed and comes with the standard GAUGEMASTER limited lifetime guarantee in the unlikely event of this unit ever giving you cause for concern.

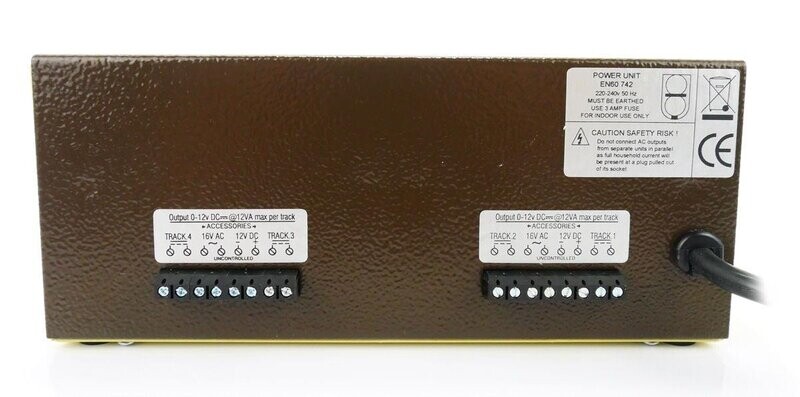

TECHNICAL DETAILS

INPUT 230v Mains

CONTROLLED OUTPUT 4 x 12v DC

UNCONTROLLED OUTPUT 1 2 x 12v DC

UNCONTROLLED OUTPUT 2 2 x 16v AC

CURRENT RATING 1.0A

MEASUREMENTS

WIDTH 210mm

DEPTH 150mm

HEIGHT 90mm
